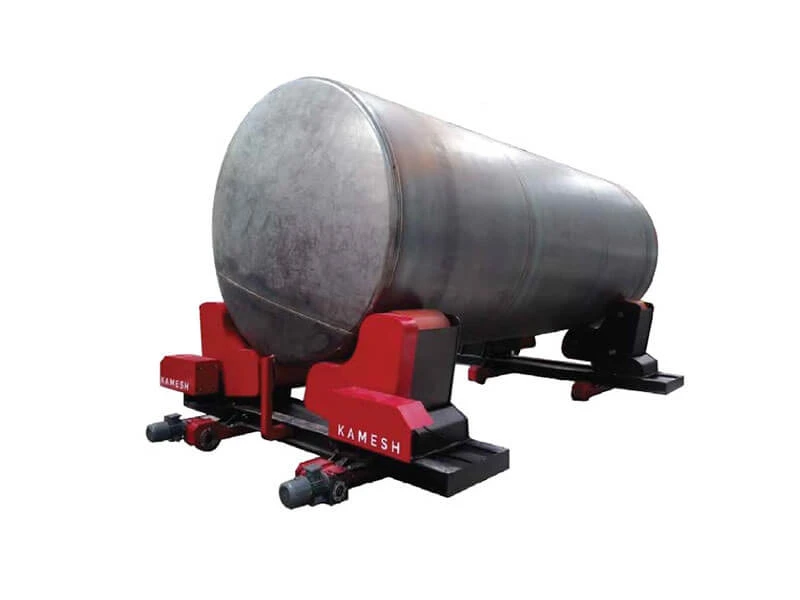

Self Alining Rotators, Conventional Rotators, Tank Turning Rolls, Turning Roller, Automatic Welding Rotator

These welding converters, which have all the features of standard conventional converters, can be aligned by itself according to the size of the shell. The distance between the wheels, could be adjusted manually

Technical Details	KWROT05	KWROT010	KWROT020	KWROT030	KWROT040	KWROT050
Conversion Capacity (Ton)	5	10	20	30	40	50
Load Capacity of Each Unit (Ton)	2,5	5	10	15	20	25
Minimum Dial Diameter (mm)	500	500	750	1000	1000	1000
Maximum Dial Diameter (mm)	4000	4000	5000	6000	6000	6000
Wheel Diameter (mm)	250	250	300	350	400	500
Total Number of Wheels	16	16	16	16	16	16
Wheel Width (mm)	60	70	70	70	70	80
Wheel Type	Polyurethane On Casting	Polyurethane On Casting	Polyurethane On Casting	Polyurethane On Casting	Polyurethane On Casting	Polyurethane On Casting
Dimensions (mm)	3100x900	3100x900	3700x1100	3700x1100	3700x1100	5000x1500
Motor power (kW)	0,37	0,55	0,75	1,1	1,1	1,5
Weight (kg)	850	950	1100	1250	1350	1750
Color	Red - Black	Red - Black	Red - Black	Red - Black	Red - Black	Red - Black

Kamesh Welding manufactures pressure vessel turning rollers, tank turning roll, pipe turning roller, oil tank turning rolls, barrel turning roll, boiler turning roller.
